This is a set of D3-based graphic panels, developed for the R/qtlcharts package but useful more generally.

They are developed in CoffeeScript; the source is on GitHub.

d3panels was recently updated to use D3 version 4.

Documentation on GitHub.


Click on a panel for a corresponding interactive illustration.

dotchart example cichart example

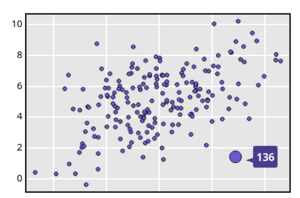

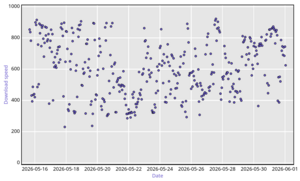

scatterplot example heatmap example
lodchart example lodheatmap example
curvechart example mapchart example
lod2dheatmap example crosstab example
trichart example histchart example

Usage

All of the functions are called as d3panels.blah(). And for each chart, you first call the chart function with a set of options, like this:

mychart = d3panels.lodchart({height:600, width:800})

And then you call the function that’s created with some selection and the data:

mychart(d3.select("div#chart"), mydata)

There are three exceptions to this: add_lodcurve, add_curves, and add_points. For these functions, you first need to call another function that creates a panel (for example, lodchart or chrpanelframe in the case of add_lodcurve, or panelframe in the case of add_curves or add_points). You then use the chart function created by that first call in place of a selection. For example:

myframe = d3panels.panelframe({xlim:[0,100],ylim:[0,100]})
myframe(d3.select("body"))

addpts = d3panels.add_points()
addpts(myframe, {x:[5,10,25,50,75,90], y:[8,12,50,30,80,90], group:[1,1,1,2,2,3]})

To use the code, you need link to d3panels.js and d3panels.css (or to d3panels.min.js and d3panels.min.css):

<script type="text/javascript" src="https://rawgit.com/kbroman/d3panels/master/d3panels.js"></script>
<link rel=stylesheet type="text/css" href="https://rawgit.com/kbroman/d3panels/master/d3panels.css">

You also need to link to D3.js and d3-tip:

<script charset="utf-8" type="text/javascript" src="https://d3js.org/d3.v3.min.js"></script>
<script type="text/javascript" src="https://rawgit.com/Caged/d3-tip/master/index.js"></script>

For a couple of panels (curvechart and scatterplot) you may also need to link to colorbrewer.js:

<script type="text/javascript" src="https://rawgit.com/mbostock/d3/master/lib/colorbrewer/colorbrewer.js"></script>
